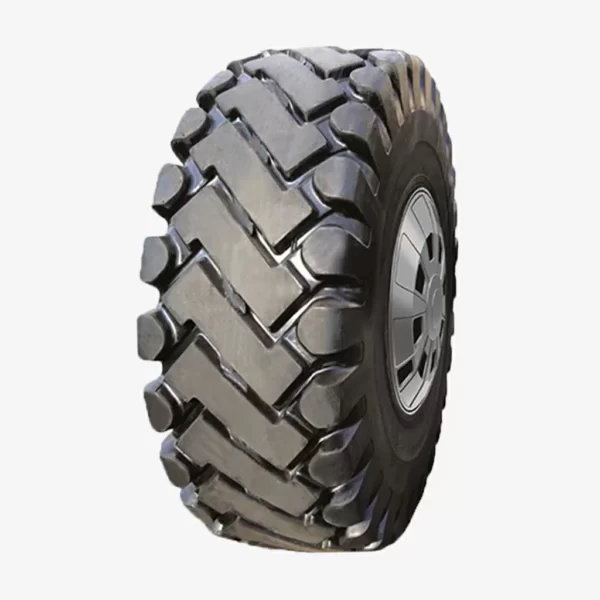

F63（E3/L3B
E3/L3B New Z tread tyre for low intensity application of Loader, Earthmover, Grader
| Pattern | F63（E3/L3B） |
|---|---|
| Application | New Z tread tyre for low intensity application of Loader, Earthmover, Grader. |
| Available Sizes | 20.5/70-16, 16/70-16, 16/70-20, 16/70-24, 15.5-25, 17.5-25, 20.5-25, 23.5-25, 26.5-25, 23.5-16, 29.5-25 |
$49.00
Technical Features:
Special tread compounds design and strong body structure design provides excellent heart resistant abrasion resistance and good drawing performance, it is durable tires on mine construction.
Transverse big wide road surface pattern with good traction& good heat dissipation, special tread rubber designs for extremely bad pavement has excellent puncture resistance performance, strong body design has superior
Specifications:
| Size | PR | Pattern | Rim type | Inflated dimension | 40km/h | 10km/h | |||
| Section width(mm) |
Overall Diameter (mm) |
Max load (kg) |
Inflation pressure (kpa) |
Max load (kg) |
Inflation pressure (kpa) |
||||
| 20.5/70-16 | 14 | F63 E3/L3B | 8.5H | 350 | 910 | 1600 | 390 | / | / |
| 16/70-16 | 14 | F63 E3/L3B | 8.5H | 260 | 870 | 1600 | 390 | / | // |
| 16/70-20 | 16 | F63 E3/L3B | 13 | 410 | 1075 | 2900 | 350 | 5150 | 450 |
| 16/70-24 | 16 | F63 E3/L3B | 13 | 410 | 1175 | 3350 | 350 | 5600 | 450 |
| 155-25 | 16 | F63 E3/L3B | 12.00/1.3 | 395 | 395 | 3250 | 250 | / | / |
| 175-25 | 20 | F63 E3/L3B | 14.00/1.5 | 445 | 1350 | 5000 | 400 | 8250 | 575 |
| 20.5-25 | 24 | F63 E3/L3B | 17.00/2.0 | 520 | 1490 | 6700 | 400 | 10300 | 525 |
| 23.5-25 | 24 | F63 E3/L3B | 19.50/2.5 | 595 | 1615 | 8000 | 350 | 12500 | 475 |
| 26.5-25 | 32 | F63 E3/L3B | 22.00/3.0 | 675 | 1750 | 11200 | 425 | 17000 | 550 |
| 23.5-16 | 14 | F63 E3/L3B | 8.5H | 410 | 410 | 1600 | 390 | / | / |
| 29.5-25 | 28 | F63 E3/L3B | 25.00/3.5 | 750 | 750 | 11500 | 325 | / | / |
