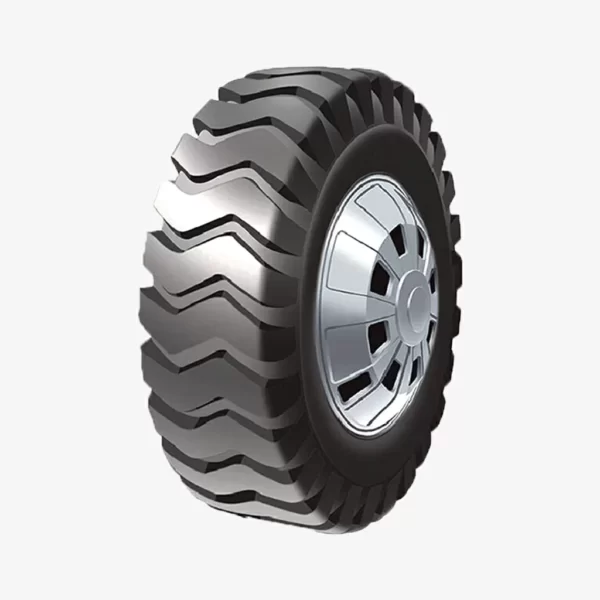

F62（E3/L3A）

F62（E3/L3A）

E3/L3A has excellent heart resistant abrasion resistance



Pattern F62 （E3/L3A）
Brand Truck&Bustire
Application Applies to heavy dump trucks, scrapers and loaders under the conditions of a variety of assignments, with wide generality, Applicable to forklift loader
Available Sizes 14.00-24, 14.00-25, 16.00-24, 16.00-25, 18.00-24, 18.00-25, 15.5-25, 17.5-25, 20.5-25, 23.5-25, 26.5-25, 29.5-25, 29.5-29, 7.50-16, 8.25-16, 9.00-16, 10.00-16, 11.00-16, 12.00-16, 14/90-16, 16/70-16, 16/90-16, 20.5/70-16, 16/70-20, 16/70-24,
Talk to an Agent !

$58.00

F62（E3/L3A）

SKU #TRTV25G Category

 Technical Features:

*Special tread compounds design and powerful body structure design, make it has excellent heart resistant abrasion resistance and good drawing performance, it is durable tires on mine construction.

*Transverse big wide road surface pattern with good traction& good heat dissipation, special tread rubber designs for extremely bad pavement has excellent puncture resistance performance, strong body design has superior

Specifications:

Size PR Pattern Rim type Inflated dimension 40km/h 10km/h
Section
width(mm)		 Overall
Diameter
(mm)		 Max load
(kg)		 Inflation
pressure
(kpa)		 Max load
(kg)		 Inflation
pressure
(kpa)
7.50-16 8 F62 E3/L3A 5.5E 205 810 650 250 1200 350
8.25-16 8 F62 E3/L3A 6.50H 235 885 970 2850 1800 380
9.00-16 8 F62 E3/L3A 6.50H 225 834 1080 310 2080 410
10.00-16 10 F62 E3/L3A W8L 275 910 1090 310 2090 410
11.00-16 10 F62 E3/L3A W10L 315 970 1060 310 2060 410
12.00-16 10 F62 E3/L3A 8.5 244 884 1100 320 2100 420
14/90-16 10 F62 E3/L3A 8.5H 215 896 1245 290 2250 390
16/70-16 12 F62 E3/L3A 8.5H 260 870 1600 390 / /
16/90-16 12 F62 E3/L3A 8.5H 260 870 1055 390 2060 490
20.5/70-16 12 F62 E3/L3A 8.5H 410 1075 1600 390 / /
16/70-20 14 F62 E3/L3A 13 410 1075 2900 350 5150 450
16/70-24 14 F62 E3/L3A 13 410 1175 3350 350 5600 450
14.00-24 24 F62 E3/L3A 10 375 1370 5150 575 9500 850
26 F62 E3/L3A 10 375 1370 5600 650 10000 925
14.00-25 20 F62 E3/L3A 10 375 1370 5150 575 9500 850
24 F62 E3/L3A 10 375 1370 5600 650 10000 925
15.5-25 16 F62 E3/L3A 12.00/12 395 1275 3250 250 9500 400
20 F62 E3/L3A 12.00/12 395 1275 4300 400 10000 625
Size PR Pattern Rim type Inflated dimension 40km/h 10km/h
Section
width(mm)		 Overall
Diameter
(mm)		 Max load
(kg)		 Inflation
pressure
(kpa)		 Max load
(kg)		 Inflation
pressure
(kpa)
16.00-24 24 F62 E3/L3A 1.25/2.0 430 1490 6000 475 10600 650
28 F62 E3/L3A 1125/2.0 430 1490 6700 575 115O0 750
16.00-25 24 F62 E3/L3A 11.25/20 430 1490 6000 475 10600 650
28 F62 E3/L3A 11.25/20 430 1490 6700 575 11500 750
17.5-25 16 F62 E3/L3A 14.00/1.5 445 1350 5600 475 9250 700
20 F62 E3/L3A 14.00/1.5 445 1350 5000 400 8250 575
18.00-24 28 F62 E3/L3A 13.00/2.5 495 1615 8000 500 13600 650
32 F62 E3/L3A 13.00/2.5 495 1615 8750 575 15000 750
18.00-25 28 F62 E3/L3A 13.00/2.5 495 1615 8000 500 13600 650
32 F62 E3/L3A 13.00/25 495 1615 8750 575 15000 750
20.5-25 20 F62 E3/L3A 17.00/2.0 520 1490 6000 325 9500 450
24 F62 E3/L3A 17.00/2.0 520 1490 6700 400 10300 525
23.5-25 20 F62 E3/L3A 19.5/2.5 595 1615 7300 300 10900 375
24 F62 E3/L3A 19.5/2.5 595 1615 8000 350 12500 475
26.5-25 24 F62 E3/L3A 22 00/3.0 675 1750 11200 425 17000 550
28 F62 E3/L3A 22.00/3.0 675 1750 10000 350 15500 475
29.5-25 28 F62 E3/L3A 25.00/3.5 750 1875 11500 325 17500 425
32 F62 E3/L3A 25.00/3.5 750 1875 12800 375 18800 475
29.5-29 32 F62 E3/L3A 25 00/3.5 750 1975 1z500 375 19000 500
40 F62 E3/L3A 25.00/3.5 750 1975 14000 400 23600 625
